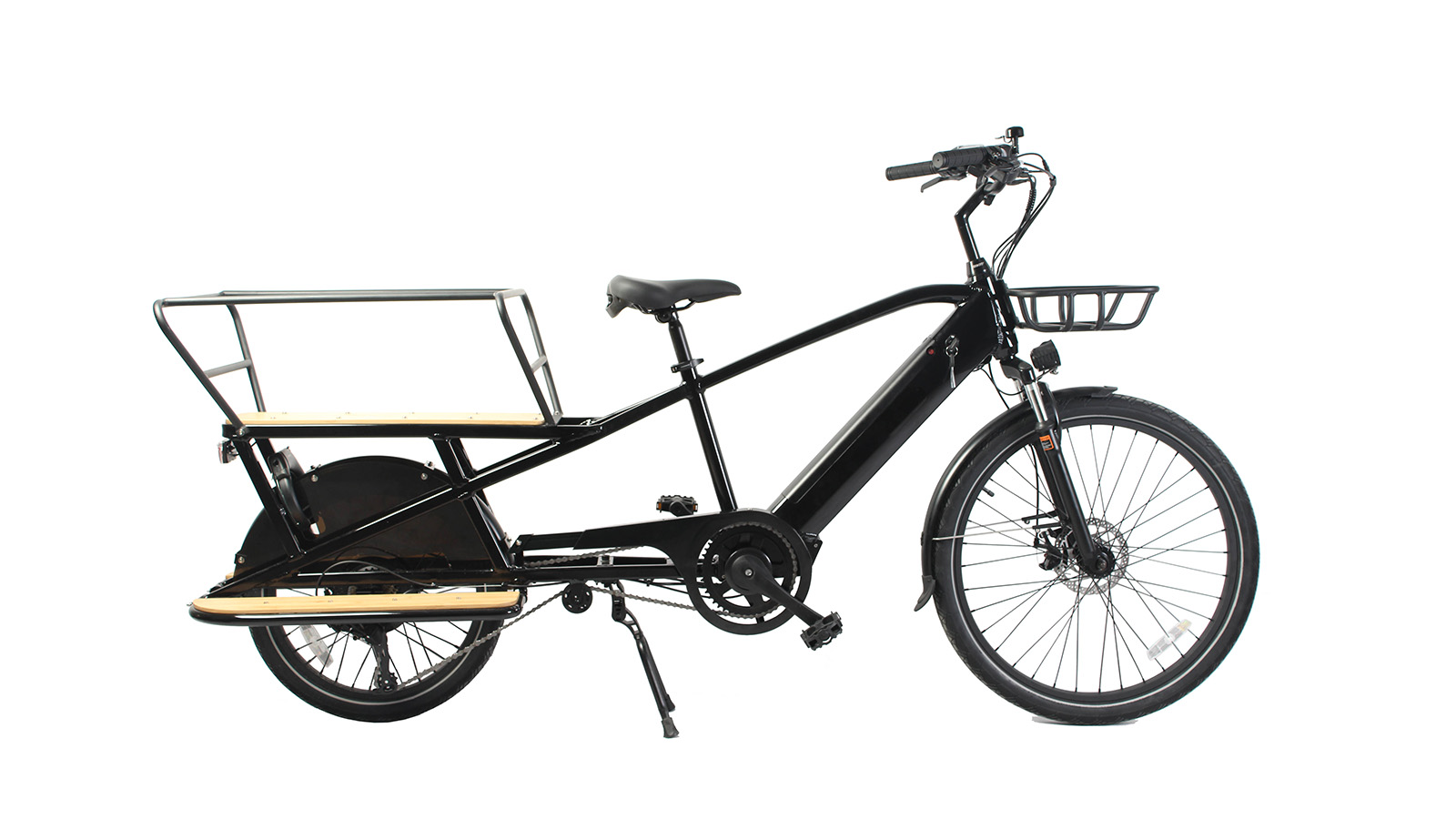

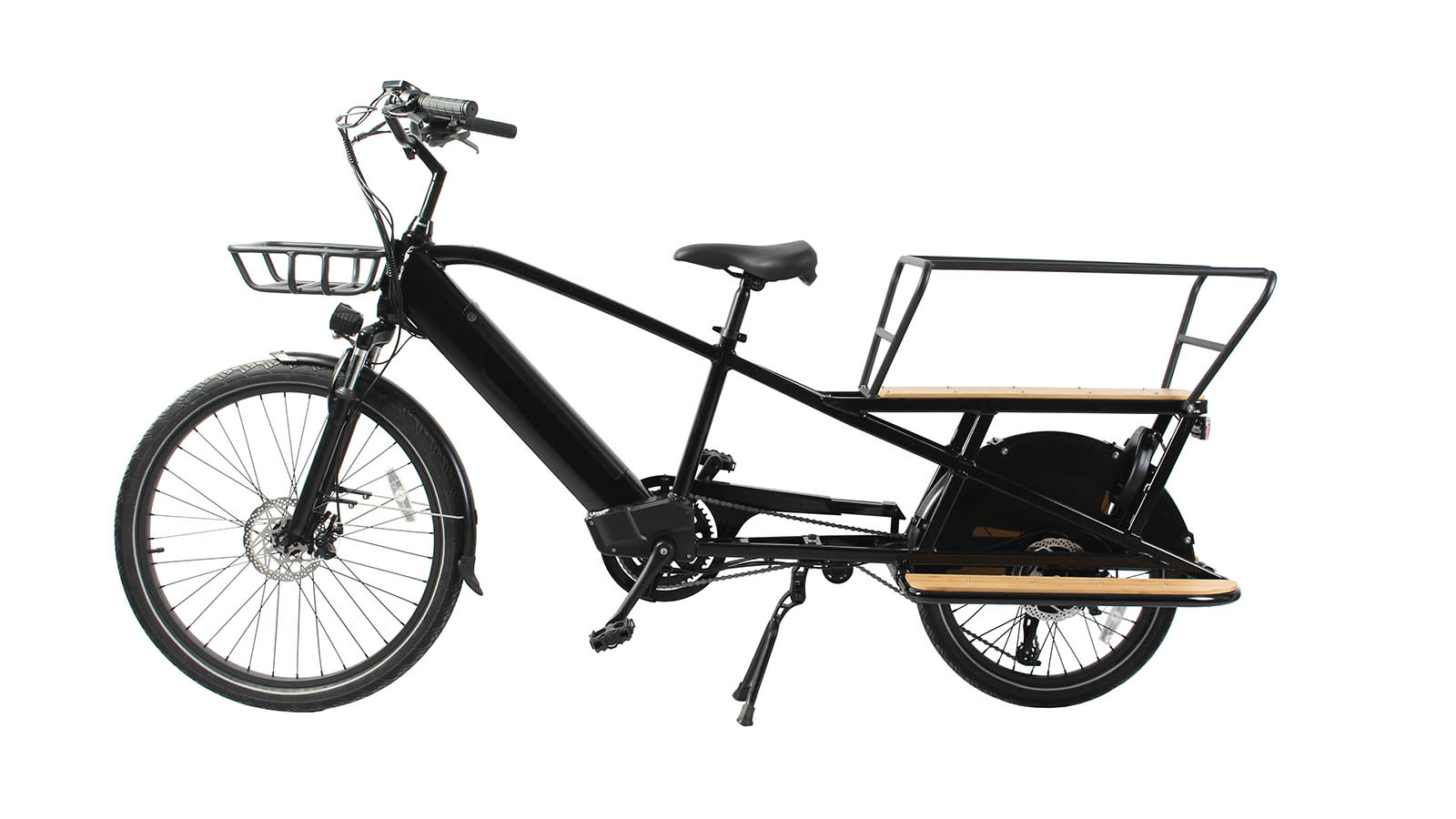

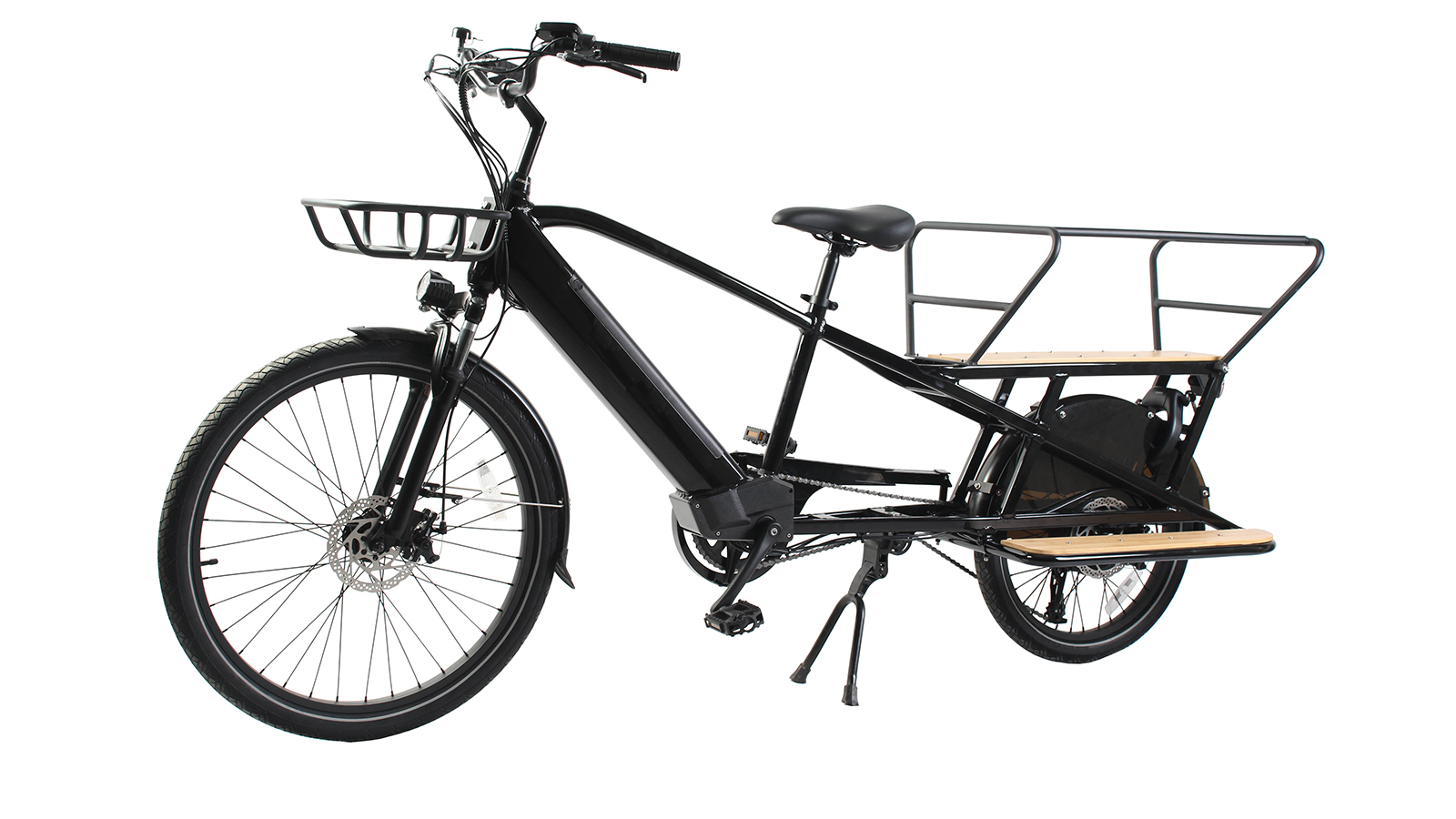

250W Electric Cargo Bike
Display and handlebar
Side mounted LCD display with city type handlebar, also front basket available
Rear carrier
Heavy duty wide rear carrier and foot rest are covered with bamboo board, also safty guard to protect the kids.
SPECIFICATIONS
| Model No. | C18 | Color | Customizable |
| Electric System | |||
| Motor | 48V250W rear hub motor | Battery | 48V15Ah lithium battery (720Wh) |
| Controller | 48V15A | Display | LCD display |
| PAS Sensor | Cadence sensor | Throttle | W/O |
| Charger | 48V2A, 110-240 Applied | ||
| Main Components | |||
| Frame | Aluminium alloy 6061 | Fork | alu alloy suspension |
| Handlebar | Alu alloy handlebar, city type | Stem | Alu alloy |
| Brake | F/R Tektro Mechanical disc brake | Brake Lever | E-cut off Brake Lever, black |
| Tyre | F: 26*2.0” R: 20*2.0” | Rim | double wall rim |
| Spoke | Stainless Steel, 13g | Light | Head Light and rear light |
| Chainwheel | Topwheel 46T | Crank | 170mm crank |
| Chain | KMC Z7 | Gear | Shimano 7-SPD |
| Shift Lever | Shimano thumb Type | Kickstand | heavy duty kickstnd |
| Saddle | city type | Grip | VELO |
| Pedal | Alu alloy, black | Rack | W/O |
| Performance | |||
| Range | 31-60km | Charging Time | 3-6h |
| Max. Load | 120kg | Max. Speed | 25km/h |
| Warranty | 1 year for the whole piece | ||
