SPECIFICATIONS
| Model No. | B14 | Color | Titanium and Customizable |
| Electric System | |||
| Motor | Bafang 48V500W rear wheel hub motor | Battery | 48V15AH lithium battery(LG cells) |
| Controller | Intelligent controller 48V20A | Display | LCD display |
| PAS Sensor | 12 magnet cadence sensor | Throttle | thumb throttle |
| Charger | 48V2A, 110-240 Applied | ||
| Main Components | |||
| Frame | Alu alloy 6061 | Fork | MOZO alloy suspension fork |
| Handlebar | Promax HB-3018 | Stem | Promax MA-400 |
| Brake | Tektro mechanical disc brake | Brake Lever | Alu alloy |
| Tyre | Kenda 26*4.0” | Rim | Double Wall Rim |
| Spoke | Stainless Steel | Light | Front and rear light |
| Chainwheel | Prowheel 46T with plastic cover | Crank | BaFang, Alu alloy |
| Chain | KMC Z7 | Gear | Shimano Tourney7-spd |
| Shift Lever | Thumb Type | Kickstand | Alu alloy/ Steel |
| Saddle | Velo VL3125 mountain type | Grip | HL-G311-1A,black 130mm length |
| Pedal | YH-44X with reflector,black | Rack | No |
| Performance | |||
| Range | 30-40km | Charging Time | 3-6h |
| Max. Load | 150kg | Max. Speed | 25km/h |
| Warranty | 1 year for the whole piece |
Disc brake
The high performance of the disc brake greatly improves the safety of braking in case of riding on mountain.Disc brake in a variety of complex conditions (rain, snow, mud road) still has a relatively good performance.
Suspension fork
The suspension fork is used to suppress the impact of the body when passing through the rough road surface, and improve the riding comfort

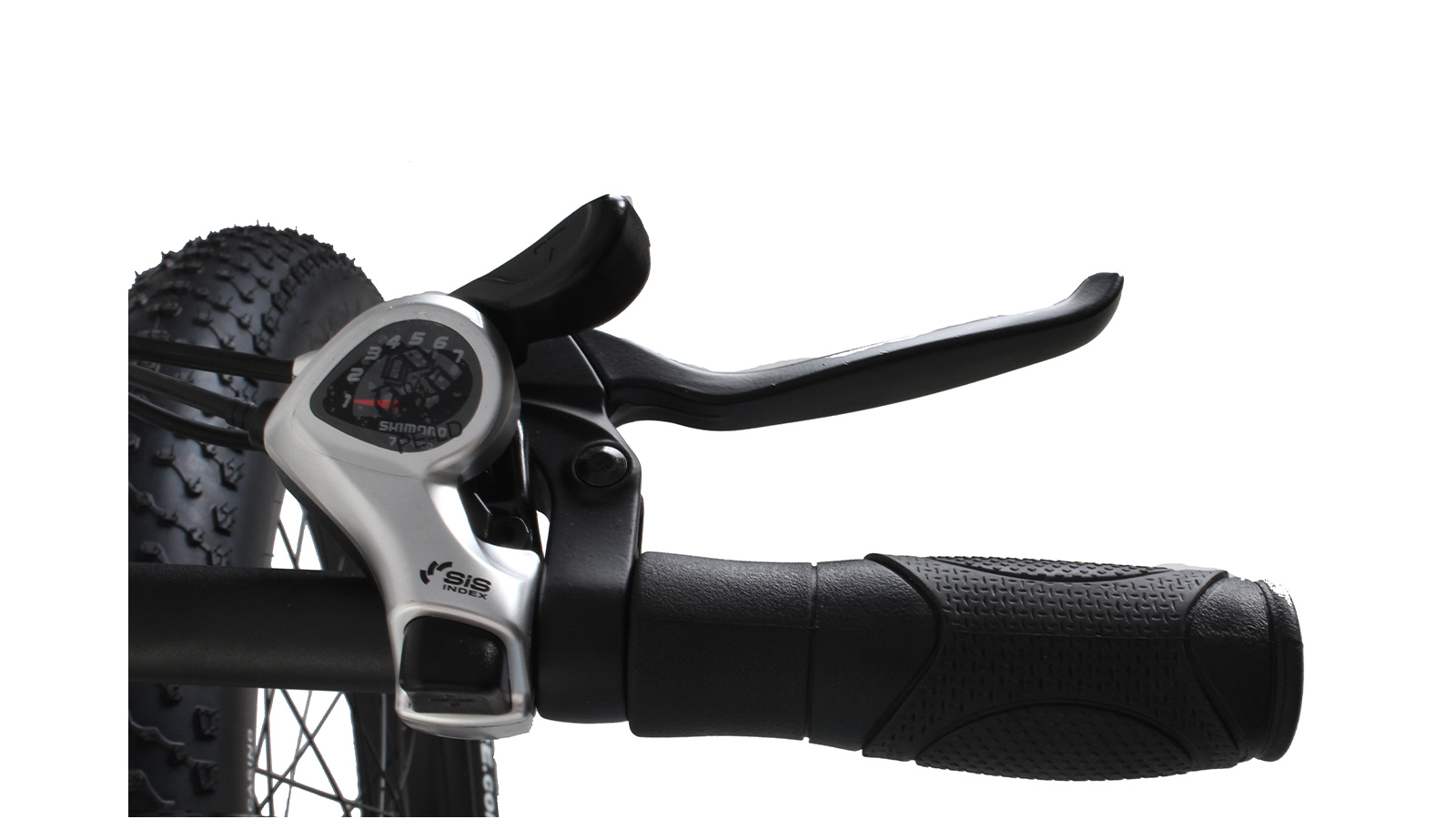

Shimano Derailleur
The road condition will be encountered with ramps,when climb a hill,you need overcome the gravity to climb up,through the gearshift,originally need to step on a circle of crant to go the road,become step on two circles.
