SPECIFICATIONS
| Model No. | B17 | Color | Orange & Customizable |
| Electric System | |||
| Motor | Bafang G020 48V500W hub motor | Battery | 48V 15Ah lithium battery(LG cells) |
| Controller | 48V20A Intelligent Controller | Display | APT Colorful display(IPS) |
| PAS Sensor | 12 magnet cadence sensor | Throttle | Thumb Throttle |
| Charger | 3A, 110-240V applied | ||
| Main Components | |||
| Frame | Alu alloy | Fork | Suspension fork |
| Handlebar | Promax HB-T320 city type, alu alloy | Stem | Promax MA-579, 28.6*31.8* adjustable |
| Brake | F&R Tektro HD-E350 hydraulic disc brake | Brake Lever | Alu alloy |
| Tyre | Kenda 26”*3.0 | Rim | Double Wall Rim |
| Spoke | Stainless Steel | Light | Front and Rear light |
| Chainwheel | Prowheel Solid 46T chainwheel | Crank | Prowheel, 170mm aluminium alloy crank |
| Chain | KMC Z7 stainless with quick release link | Gear | Shimano 7-spd |
| Shift Lever | Thumb Type | Kickstand | Alu alloy/ Steel |
| Saddle | VELO Comfortable saddle | Grip | TPR with lock ring, 130MM each side |
| Pedal | Wellgo B087 alu alloy pedal | Rack | Rear carrier for food box |
| Performance | |||
| Range | 31-60km | Charging Time | 3-5h |
| Max. Load | 200kg | Max. Speed | 40km/h |
| Warranty | 1 year for the whole piece |

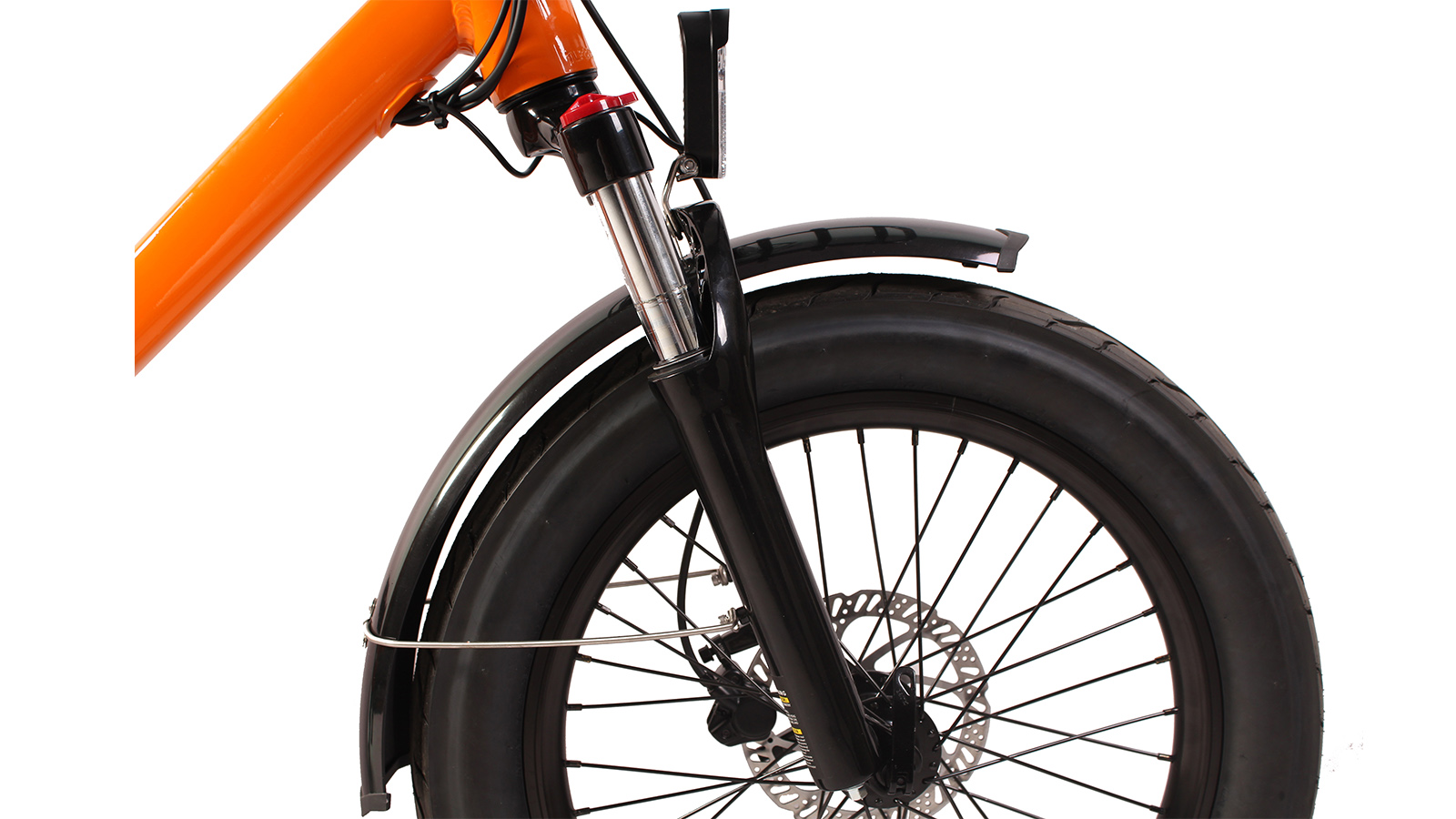

Suspension Fork
The suspension fork is used to suppress the impact of the body when passing through the rough road surface, and improve the riding comfort.
Hydraulic Disc Brake
The high performance of the hydraulic disc brake greatly improves the safety of braking in case of riding on mountain.Hydraulic disc brake in a variety of complex conditions (rain, snow, mud road) still has a relatively good performance.
Rear Rack&Wooden foot rest pedal
Rear rack and wooden pwads provide the rider with a greater load capacity, not only for people but also for objects, and to a large extent, free the rider’s body of load.
