SPECIFICATION
Model No. | B24 | Color | Customizable |
Electric System | |||
Motor | Bafang 48V500W rear wheel hub motor | Battery | 48V15AH lithium battery(LG cells) |
Controller | 48V20A | Display | LCD display |
PAS Sensor | 12 magnet cadence sensor | Throttle | thumb throttle |
Charger | 48V3A, 110-240 Applied | ||
Main Components | |||
Frame | Alu alloy 6061 | Fork | alloy suspension fork |
Handlebar | Promax HB-201B BMX | Stem | Promax MA-50 |
Brake | Tektro M300 mechanical disc brake | Brake Lever | Alu alloy |
Tyre | CST 20”*3.0 | Rim | Double Wall Rim |
Spoke | Stainless Steel | Light | Head Light and rear light |
Chainwheel | Prowheel 48T with plastic cover | Crank | BaFang, Alu alloy |
Chain | KMC Z8 | Gear | Shimano Altus 8-spd |
Shift Lever | Thumb type | Kickstand | Aluminum |
Saddle | Justek 5693DSN | Grip | Starunion,Wuxing |
Pedal | WELLGO C246DU with reflector | Rack | Alu alloy 6061 |
Performance | |||
Range | 30-50km | Charging Time | 3-6h |
Max. Load | 120kg | Max. Speed | 25km/h |
Warranty | 1 year for the whole piece |

Full suspension
The high performance of the full suspension greatly improves the safety and stability of riding on rough path.

Saddle and rack
The leather saddle make riding more comfortable,and the wide rack can carry more cargo.

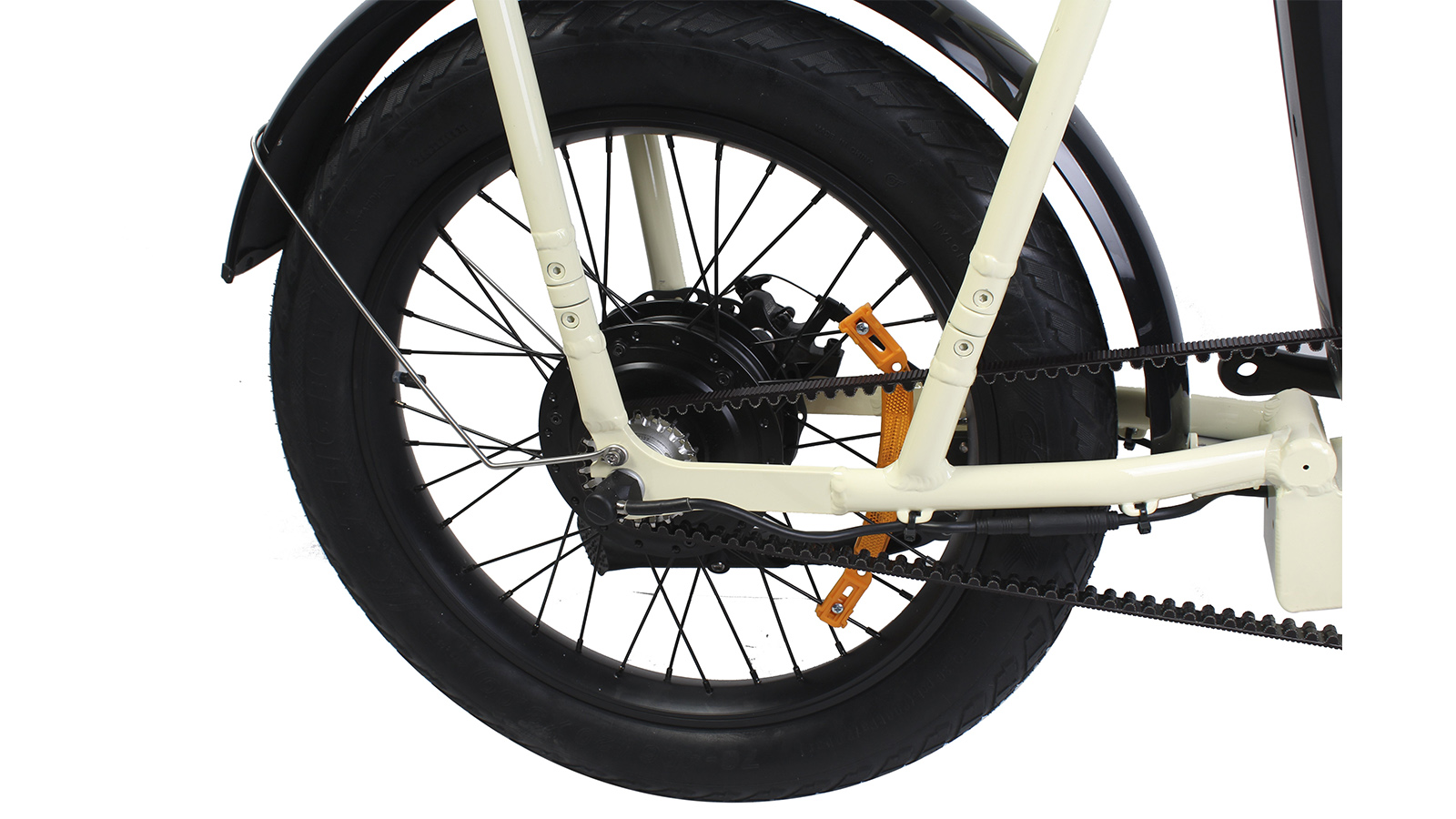

Belt drive and chainwheel
The road condition will be encountered with ramps,when climb a hill,you need overcome the gravity to climb up,through the gearshift,originally need to step on a circle of crant to go the road,become step on two circles.
